AMA Insulation Paper

AMA Insulation Paper
Main parameters:

Insulation class:  F class (155 °C)

Color: white

Width: 10-980mm

Thickness:0.12-0.5mm

Can be customized

Yaan Catalog
  • Product Details
  • Company Profile

Product Video

Product Information


Introduction of AMA Insulation Paper

The Class F AMA flexible laminate insulation paper is a three-layer flexible composite material, produced by using F Class adhesive to adhere the polyester film with hot rolling Aramid paper on both sides
--Three layers: polyester film is bonded with hot rolling Aramid paper (A).
--Middle Layer: Polyester film(PET) for Electrical Purposes
--Outer Layer: hot rolling Aramid paper (A).

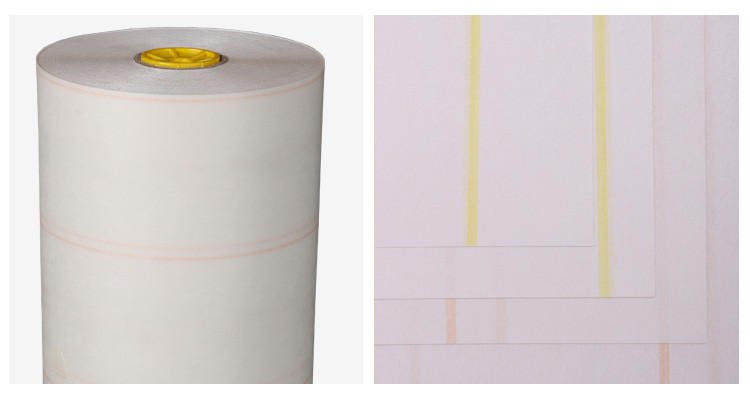

According to different thicknesses of Aramid paper, AMA can be divided into two kinds. The thicker one(0.04mm) with yellow line, the other one(0.05mm) with orange line.
The AMA insulation paper has excellent heat-resistant, electrical, and mechanical properties. The performance is totally according with the standard of NMN(GB/T5591.3-2008), and it has the very similar property as AMA.The price is cheaper than NMN insulation paper.  It’s perfect substitute of NMN.

Main features of this AMA Insulation Paper

1.Temp class F (155 °C )
2.Excellent heat resistance,dielectric property and mechanical strength
3.Good cutting and overload resistance, high stiffness.Good compatibility with insulation varnish
4.As slot, interturn and liner insulation for F-grade motors and electric appliances
5. It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

 Insulation Flexible Laminates

Technical Parameters


Item Unit Requirement
Nominal thickness mm 0.15 0.17 0.19 0.22 0.24 0.26 0.31 0.37 0.41
Thickness tolerance mm ±0.022 ±0.024 ±0.026 ±0.031 ±0.037 ±0.041
Grammage g/m2 150±18 170±20 200±24 230±27 270±32 305±36 360±43 450±54 515±61
Film nominal thickness um 36 50 75 100 125 150 188 250 300
Tensile strength MD no bending N/10mm ≥150 ≥150 ≥170 ≥190 ≥220 ≥240 ≥270 ≥330 ≥370
  MD after bending   ≥90 ≥90 ≥105 ≥120 ≥150 ≥180 ≥200 ≥300 ≥330
  TD no bending   ≥80 ≥90 ≥100 ≥110 ≥130 ≥170 ≥200 ≥250 ≥300
  TD after bending   ≥70 ≥70 ≥90 ≥100 ≥120 ≥150 ≥150 ≥200 ≥230
Elongation MD % ≥15 ≥3
(%)
TD   ≥20 ≥10
Breakdown voltage No bending   ≥7 ≥8 ≥11 ≥12 ≥14 ≥16 ≥19 ≥23 ≥25
KV
After bending   ≥6 ≥7 ≥9 ≥10 ≥12 ≥14 ≥15 ≥18 ≥19
Delamination No Delamination, no bubble or other defects
Heat affected(200±2℃) 10min   No Delamination, no bubble, no adhesive flow
Long-term heat resistance   ≥180
(temperature index TI)
Weight and area conversion m2/Kg 7.23 6.33 5.18 4.39 3.8 3.36 2.85 2.28 1.97
