GHG Insulation Paper

GHG Insulation Paper
Main Parameters:

Insulation class:  class: H class (180 °C)

Width: 10-1250mm

Thickness: 0.15-0.25mm

Can be customized

Yaan Catalog
  • Product Details
  • Product Video
  • Company Profile

Product Information

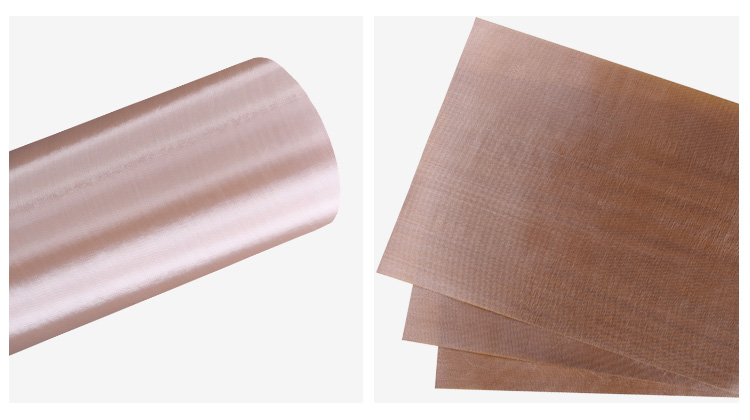

Brief introduction of the GHG Insulation Paper

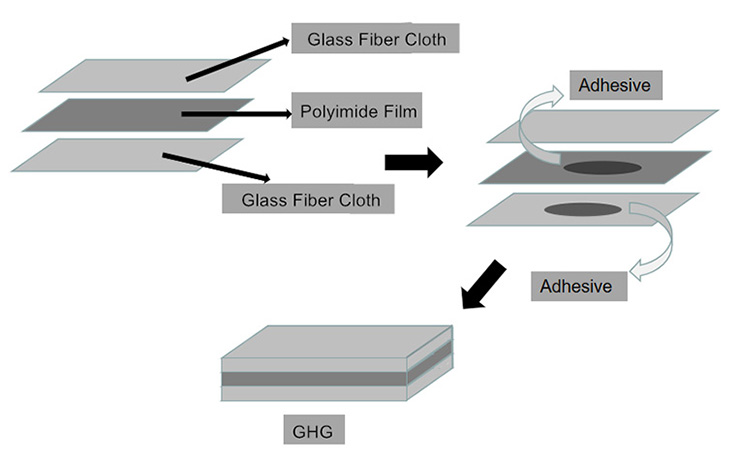

GHG is a three-layer flexible composite material, produced by using H-class adhesive to adhere the two sides of polyimide film with alkali-free glass cloth.
It is with good physical mechanical property, dielectric property, soft and tear resistant, heat property and fire resistance property.

Main features of the GHG Insulation Paper

--Good mechanical, electric, thermal properties.
--Thermal class is H (180 C).
--Used instead of Nomex paper and Nomex paper laminates
-Used as layer insulation of class H and F dry type transformer.
--Slot insulation,
--Pas insulation.
--Turn- to- turn insulation in electric motors.
--Marks: we can make thickness 0.09mm - 0.35mm
--The insulation system has been approved by UL (NO.: E310670) and the products have passed ROHS and RECH test.

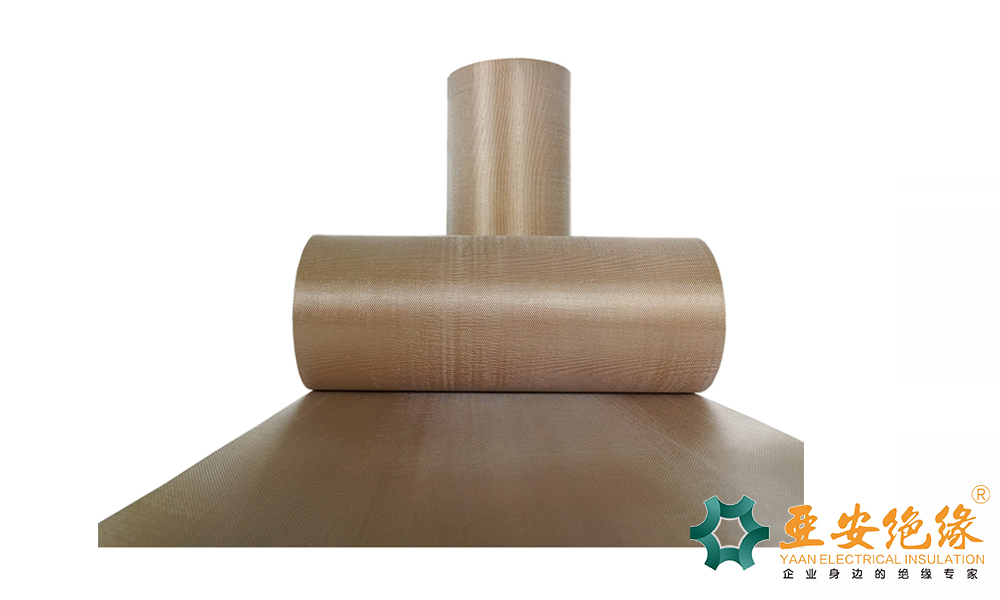

GHG Insulation Paper

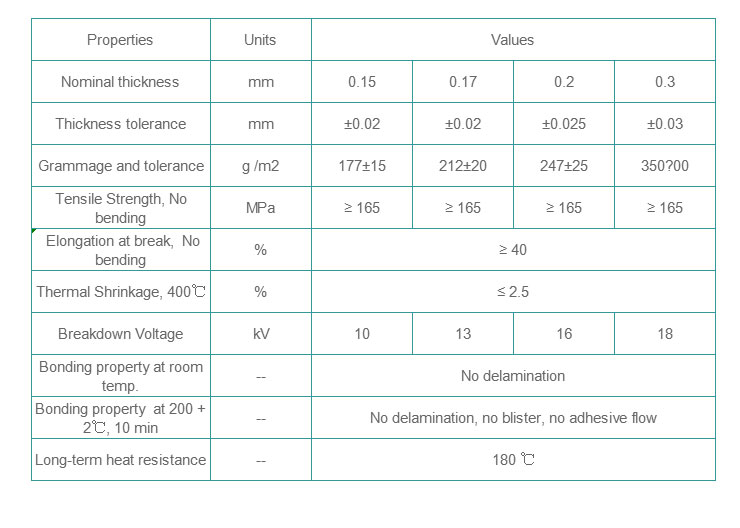

Technical Parameters


FAQ


1.Q: Are you trading company or manufacturer ?


A: We are a manufacturer, We have more than 36 years experience in producing electrical insulation material.


2.Q: Where is your factory located? How can I visit there?


A: Our factory is located in Xuchang,Henan provience.


3.Q: Which certification do you have?


A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.


4.Q: Can i get a samples for free?


A: Of course we can sent you a sample of 2715 pvc insulation fiberglass sleeving for free, customers just need to pay a litter shipping change.


5.Q: How long is the delivery time?


A: Generally it is 5-15 days if polyimide film price is  in stock, or it is 15-30 days.
