Main Parameters:
Insulation class: F Class (155℃)
Width: 10-1000mm
Thickness: 0.1mm-0.35mm
Can be customized
Product Video
Product Information

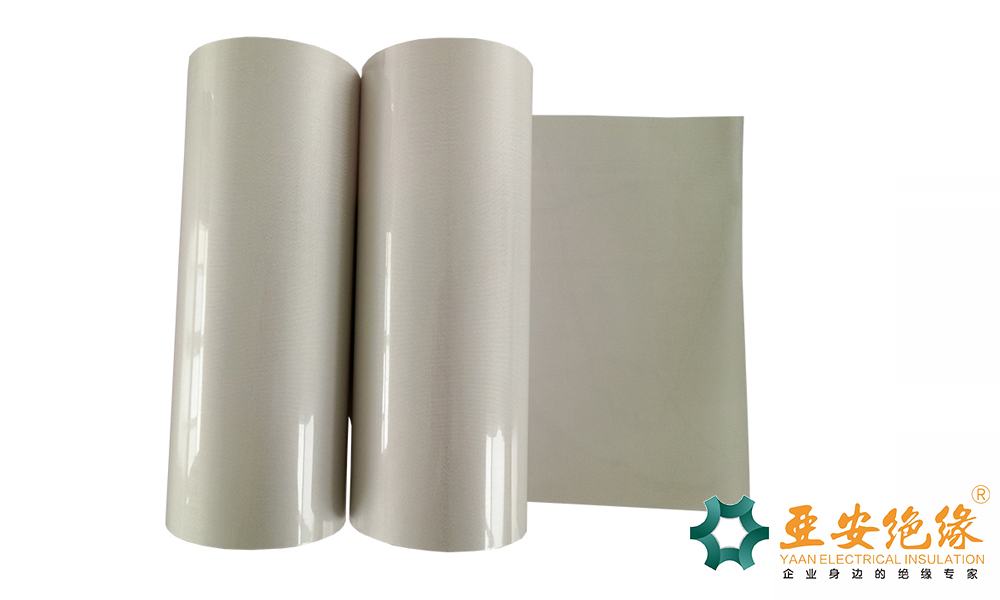

Description of the MGM Insulation Paper

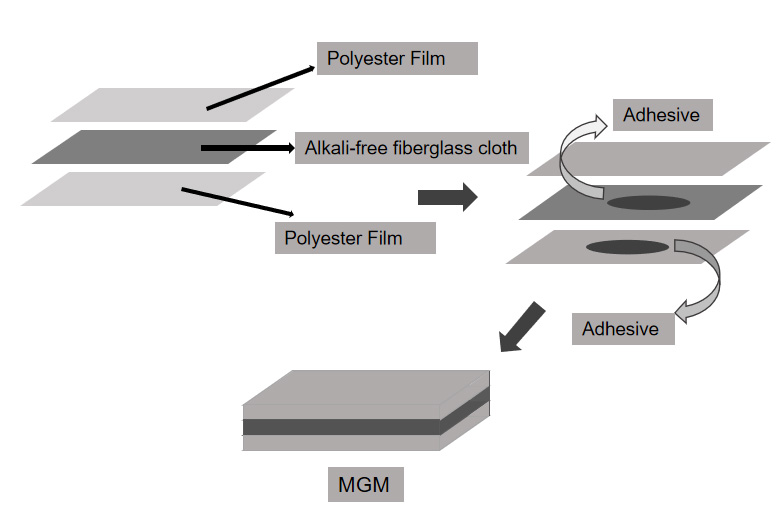

MGM is a three-layer flexible composite material, produced by F-class adhesive to adhere the two sides of alkali-free glassfiber cloth with polyester film.
Characters of the glass cloth:
—Heat, spark and flame resistant, temperature rating 1000°F
—Chemical resistant
—Low thermal conductivity
—High tensile strength, no stretch or shrink
—High dielectric strength
MGM insulation laminates with excellet mechanical strength ,great electrical properties and good flexibility
Main features of the MGM Insulation Paper
—Excellet mechanical strength and electrical properties of polyester film.
—Good flexibility and the most ability of fiberglass cloth.
—Insulation Class: F Class (155℃.
—Appearance: Smooth, beautiful, shining.
—insulation paper/ Mylar/Glass fiber
—It has been approved by UL (NO.: E310670) ,ROHS and REACH test.
Technical Parameters
No. | Name | Unit | Value | ||||
1 | Thickness | mm | 0.13 | 0.15 | 0.17 | 0.2 | 0.25 |
2 | Tolerance of thickness | mm | ± 0.015 | ± 0.02 | |||
3 | Grammage and tolerance | g /m2 | 178±15 | 197±20 | 233±25 | 267±25 | 337±30 |
4 | Tensile strength, no bending | MPa | ≥ 150 | ||||
5 | Elongation at break, no bending | % | ≥ 60 | ||||
6 | Dimensional stability at high temperature | ℃ | ≥ 200 | ||||
7 | Breakdown ≥ | KV | 11 | 13 | 14 | 15 | 18 |
8 | Adhesive property at room temperature | -- | No delamination | ||||
9 | Adhesive property at room temperature,(180 ±2)℃,10 minutes | -- | No delamination, no bubble, no adhesive flow | ||||
10 | Long time thermostability,Insulation Class | ℃ | 155 |
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are a manufacturer, We have more than 36 years experience in producing electrical insulation material.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xuchang,Henan provience.
3.Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.
4.Q: Can i get a samples for free?
A: Of course we can sent you a sample for free, customers just need to pay a litter shipping change.
5.Q: How long is the delivery time?
A: Generally it is 5-15 days if polyimide film price is in stock, or it is 15-30 days.
